standard
It has the volume, but is almost invisible. Thanks to CM’s unique bending system, the edge protrudes from the worktop, but in a way that is elegantly imperceptible.
satin

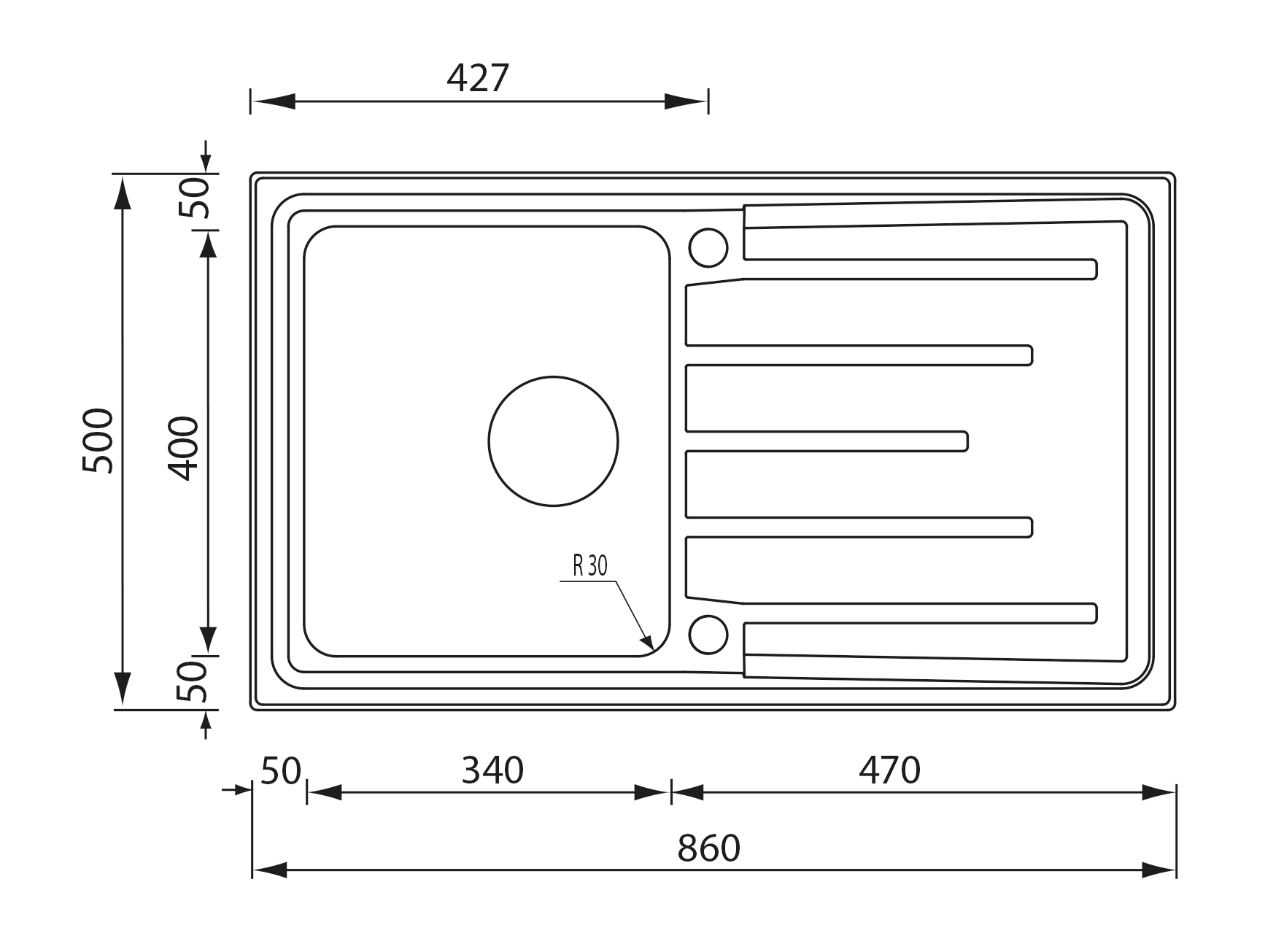

9109015103 satin- finished F3" standard
| basis 1 | mm 450 / mm 500 if at beginning of kitchen |
| basis 2 | mm 900 for top lower than 30 mm |
| built-in fitting hole | mm 835 x 475 |
| bowl depth | mm 210 |
| reversible version | |
| Rondo' automatic pop -up waste kit with square control | |
| with pre-installed sealing | |
technical
optionals
1.1
092000
withe ABS tray
mm 342 x 410
2.3
092031
stainless steel perforated bowl
mm 410 x 230
2.13
092065
stainless steel perforated bowl with draining rack
410x280 h.70
2.14
092066
stainless steel perforated bowl
410x280 h.70
4.4
093080
stainless steel basket
mm 400 x 325
5.6
094095
PE white chopping board
mm 420 x 320
5.7
094096
black HPL bowl covers
mm 250 x 415
5.9
094097
black HPL support grid
mm 250 x 415
5.10
094098
2 black HPL multipurpose bars
mm 50 x 415
5.11
092064
stainless steel perforated tray with HPL black cho
mm 410x280
6.3
094020
sliding iroko chopping board
depth 500
7.4
094021
sliding iroko PE chopping board
depth 500
11.1
093004
stainless roll up carpet
mm 470x450

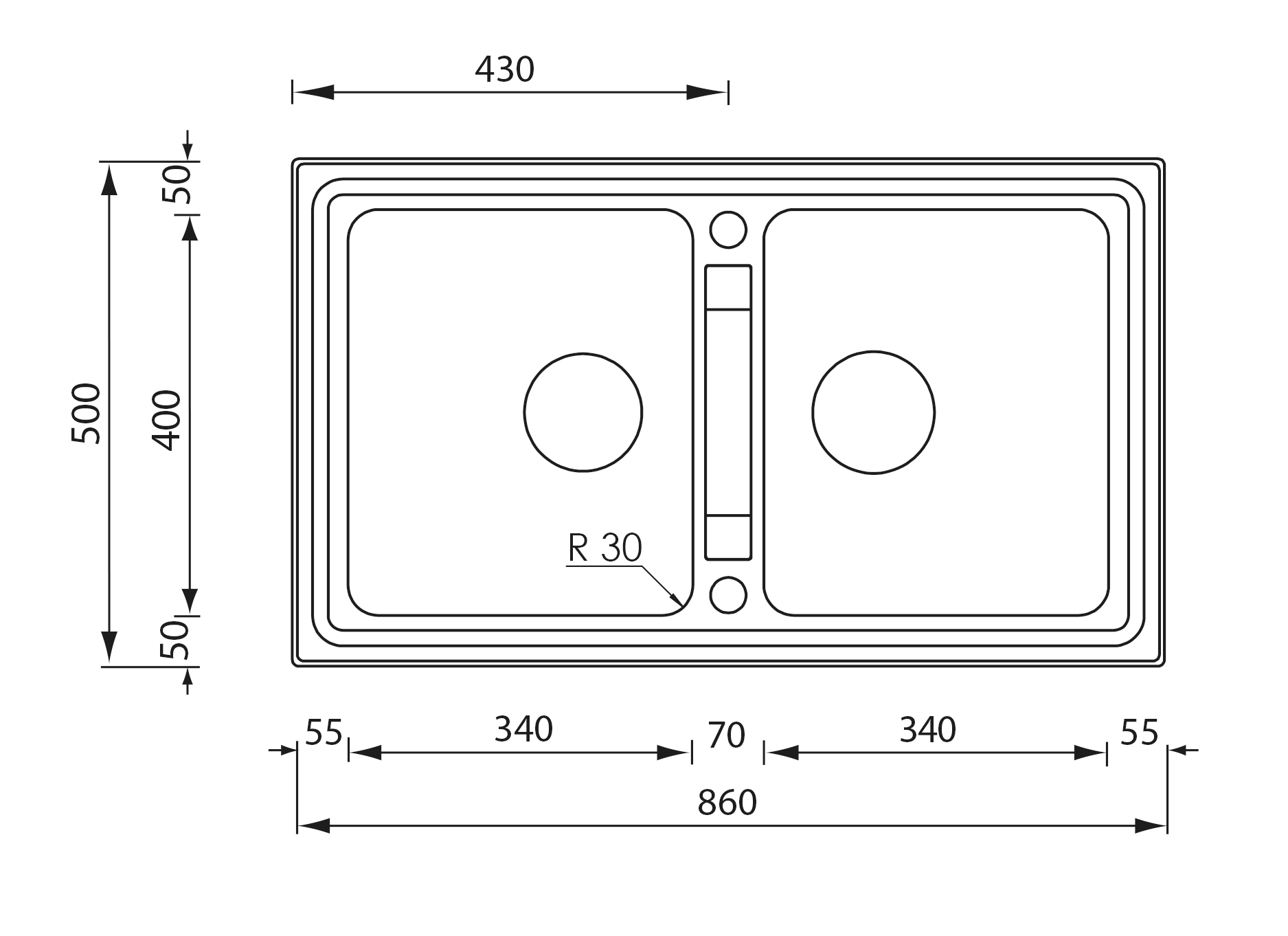

015104 satin- finished F3" standard
| basis 1 | mm 800 / mm 900 if at beginning of kitchen |
| basis 2 | mm 900 for top lower than 30 mm |
| built-in fitting hole | mm 835 x 475 |
| bowls depth | mm 210 |
| Rondo' automatic pop -up waste kit with square control | |
| with pre-installed sealing | |
technical
optionals
1.1
092000
withe ABS tray
mm 342 x 410
2.3
092031
stainless steel perforated bowl
mm 410 x 230
2.13
092065
stainless steel perforated bowl with draining rack
410x280 h.70
2.14
092066
stainless steel perforated bowl
410x280 h.70
4.4
093080
stainless steel basket
mm 400 x 325
5.6
094095
PE white chopping board
mm 420 x 320
5.7
094096
black HPL bowl covers
mm 250 x 415
5.9
094097
black HPL support grid
mm 250 x 415
5.10
094098
2 black HPL multipurpose bars
mm 50 x 415
5.11
092064
stainless steel perforated tray with HPL black cho
mm 410x280
6.3
094020
sliding iroko chopping board
depth 500
7.4
094021
sliding iroko PE chopping board
depth 500
11.1
093004
stainless roll up carpet
mm 470x450

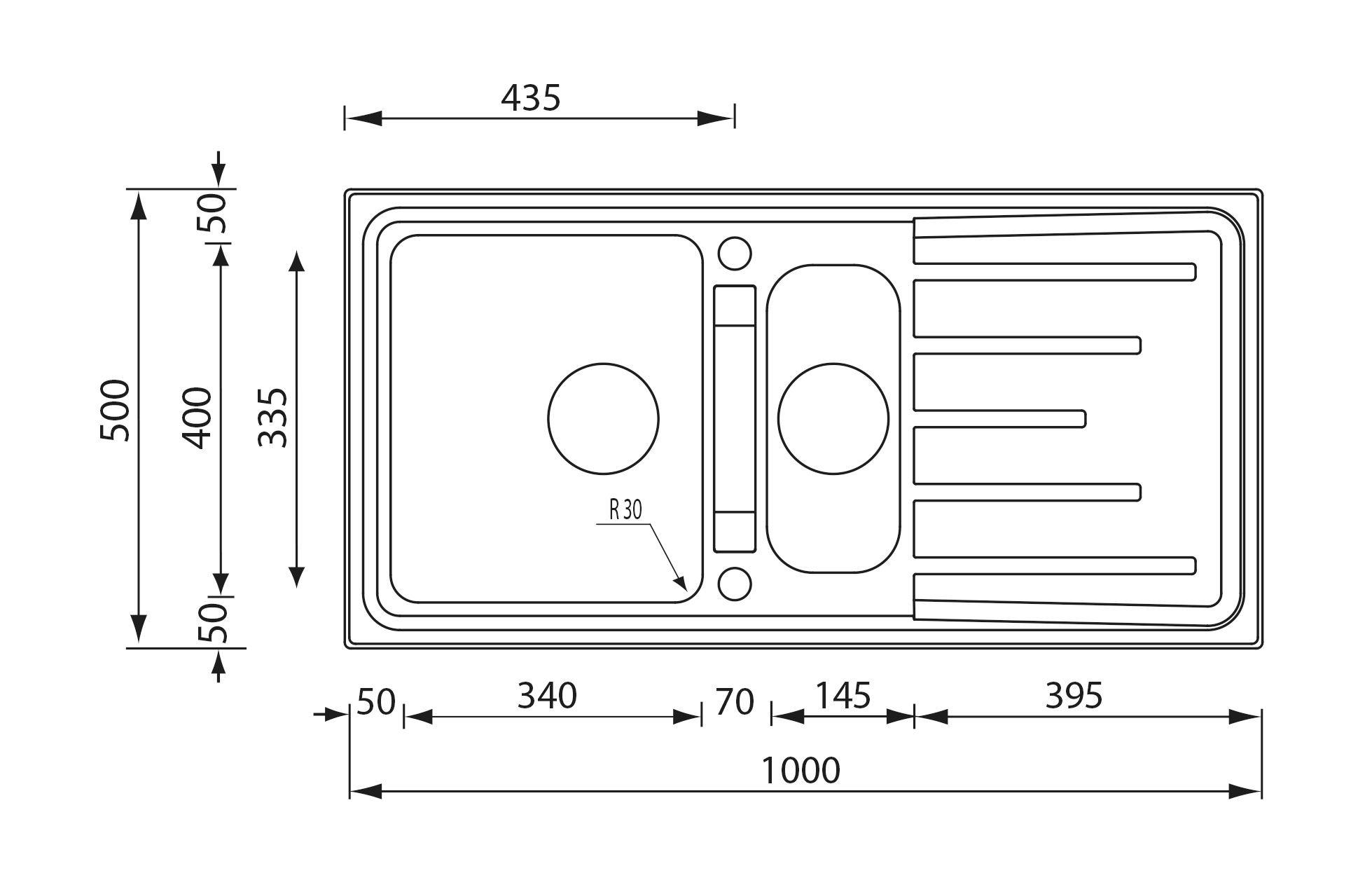

015105 satin- finished F3" standard
| basis 1 | mm 600 / mm 800 if at beginning of kitchen |
| basis 2 | mm 1200 for top lower than 30 mm |
| built-in fitting hole | mm 975 x 475 |
| bowls depth | mm 210 - 140 |
| reversible version | |
| the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
| Rondo' automatic pop -up waste kit with square control | |
| with pre-installed sealing | |
technical
optionals
1.1
092000
withe ABS tray
mm 342 x 410
2.1
092020
stainless steel perforated bowl
mm 335 x 145
2.3
092031
stainless steel perforated bowl
mm 410 x 230
2.13
092065
stainless steel perforated bowl with draining rack
410x280 h.70
2.14
092066
stainless steel perforated bowl
410x280 h.70
4.3
093041
stainless steel basket
mm 335 x 145
4.4
093080
stainless steel basket
mm 400 x 325
5.6
094095
PE white chopping board
mm 420 x 320
5.7
094096
black HPL bowl covers
mm 250 x 415
5.9
094097
black HPL support grid
mm 250 x 415
5.10
094098
2 black HPL multipurpose bars
mm 50 x 415
5.11
092064
stainless steel perforated tray with HPL black cho
mm 410x280
6.3
094020
sliding iroko chopping board
depth 500
7.4
094021
sliding iroko PE chopping board
depth 500
11.1
093004
stainless roll up carpet
mm 470x450

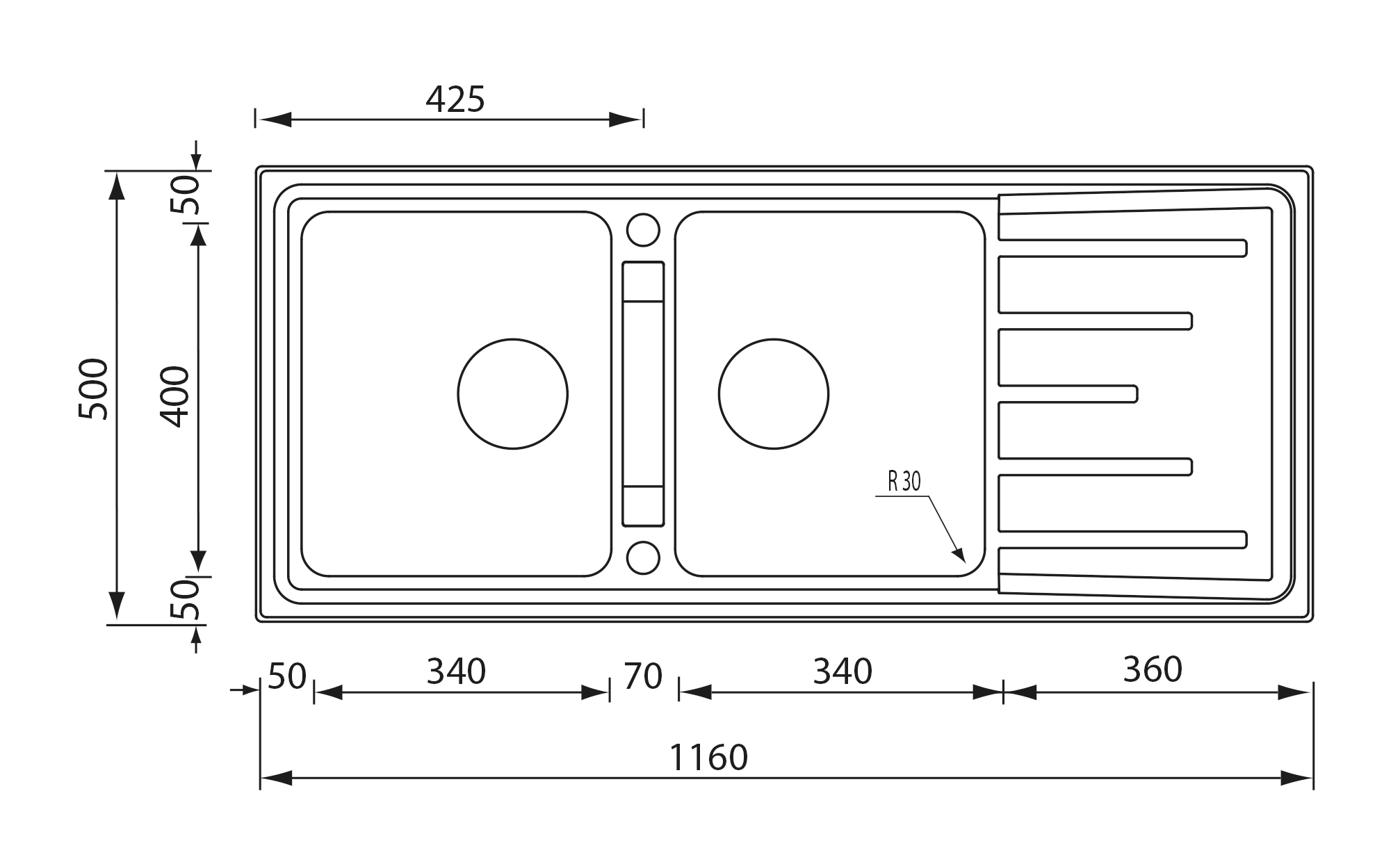

015107 satin- finished F3" standard
| basis 1 | mm 800 / mm 900 if at beginning of kitchen |
| basis 2 | mm 1200 for top lower than 30 mm |
| built-in fitting hole | mm 1135 x 475 |
| bowls depth | mm 210 |
| reversible version | |
| Rondo' automatic pop -up waste kit with square control | |
| with pre-installed sealing | |
technical
optionals
1.1
092000
withe ABS tray
mm 342 x 410
2.3
092031
stainless steel perforated bowl
mm 410 x 230
2.13
092065
stainless steel perforated bowl with draining rack
410x280 h.70
2.14
092066
stainless steel perforated bowl
410x280 h.70
4.4
093080
stainless steel basket
mm 400 x 325
5.6
094095
PE white chopping board
mm 420 x 320
5.7
094096
black HPL bowl covers
mm 250 x 415
5.9
094097
black HPL support grid
mm 250 x 415
5.10
094098
2 black HPL multipurpose bars
mm 50 x 415
5.11
092064
stainless steel perforated tray with HPL black cho
mm 410x280
6.3
094020
sliding iroko chopping board
depth 500
7.4
094021
sliding iroko PE chopping board
depth 500
11.1
093004
stainless roll up carpet
mm 470x450
