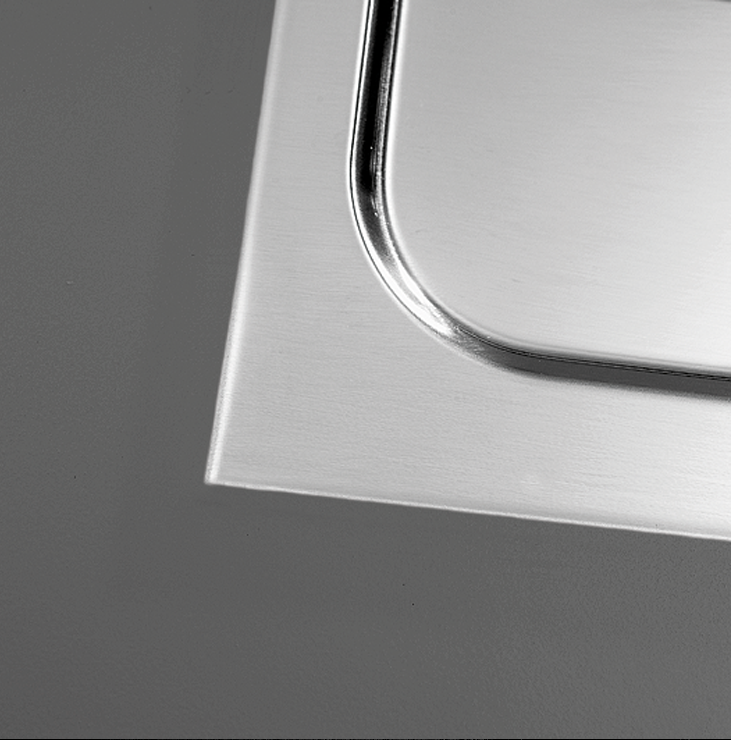

slim
Installing it is as easy as laying it down. The effect is practical and light. Only touch will reveal the small perimeter edge. Elegance and functionality in the kitchen.
satin

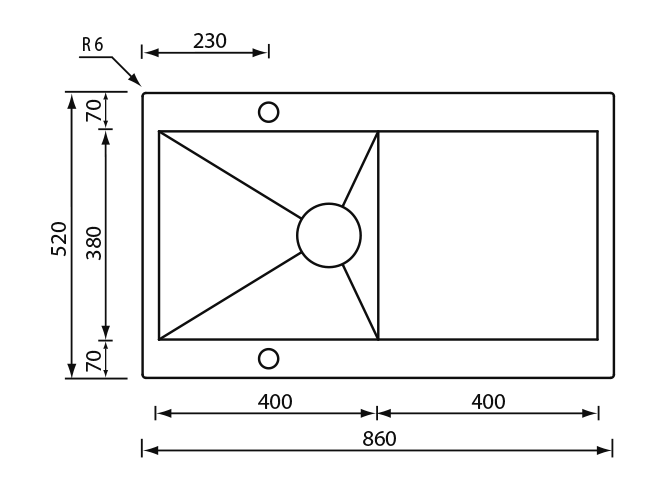

9229012983 satin-finished F3"slim
| basis 1 | mm 500 |
| basis 2 | mm 900 for top lower than 30 mm |
| built-in fitting hole | mm 840 x 500 |
| bowl depth | mm 190 |
| reversible version | |
| Vortex automatic pop -up waste kit with square control | |
technical
optionals
2.5
092037
stainless steel perforated bowl
mm 390 x 230
3.7
092036
stainless steel perforated tray
mm 335 x 380
4.8
093102
stainless steel basket
mm 340 x 350
4.15
093005
stainless steel grid for bottom bowl
310x315
6.4
094051
iroko chopping board
mm 335 x 380
9.2
094054
iroko chopping board with stainless steel glass dr
mm 335 x 380
11.1
093004
stainless roll up carpet
mm 470x450

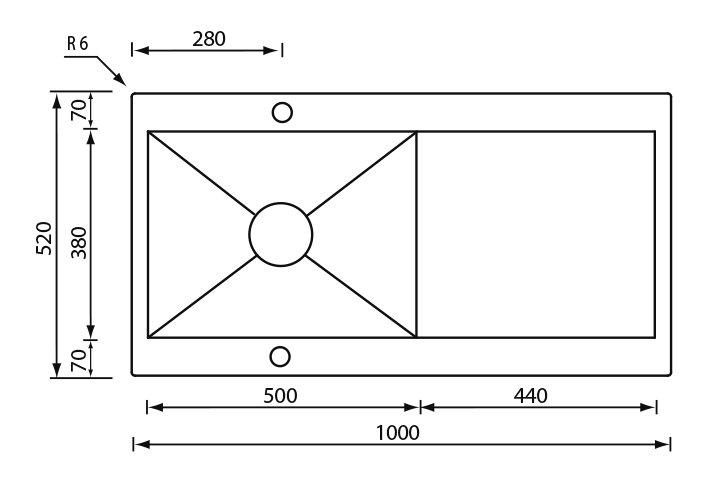

012986 satin-finished F3"slim
| basis 1 | mm 600 / mm 800 if at beginning of kitchen |
| basis 2 | mm 1200 for top lower than 30 mm |
| built-in fitting hole | mm 980 x 500 |
| bowl depth | mm 190 |
| reversible version | |
| Vortex automatic pop -up waste kit with square control | |
technical
optionals
2.5
092037
stainless steel perforated bowl
mm 390 x 230
3.7
092036
stainless steel perforated tray
mm 335 x 380
4.8
093102
stainless steel basket
mm 340 x 350
6.4
094051
iroko chopping board
mm 335 x 380
9.2
094054
iroko chopping board with stainless steel glass dr
mm 335 x 380
11.1
093004
stainless roll up carpet
mm 470x450

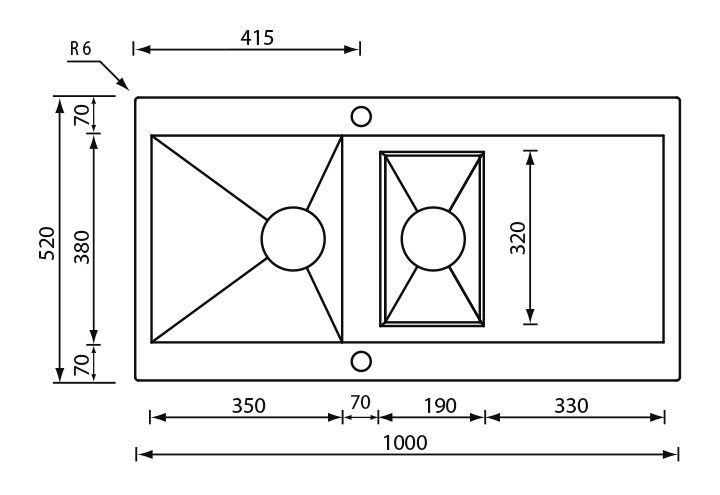

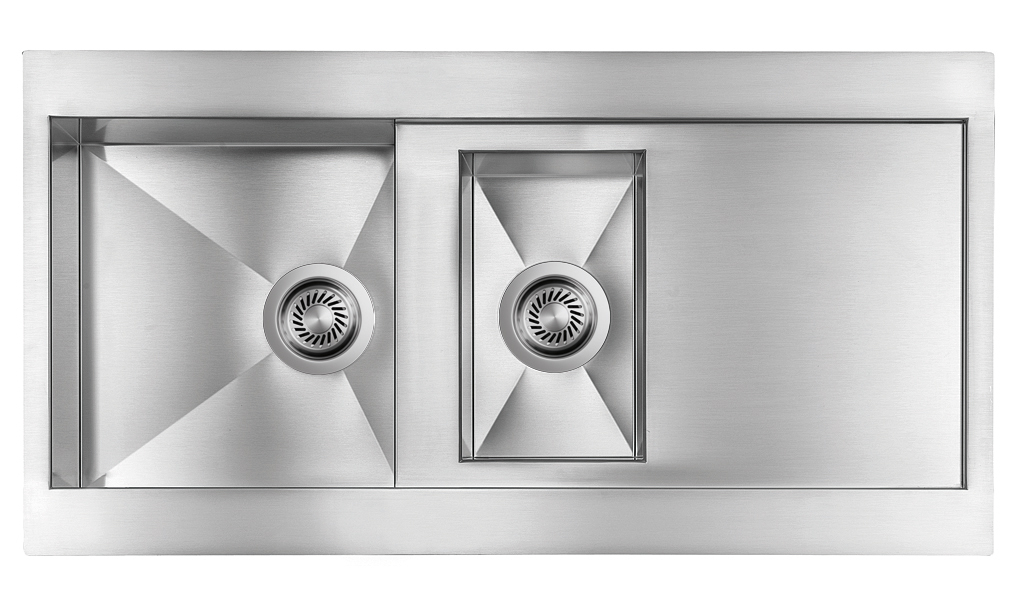

012985 satin-finished F3"slim
| basis 1 | mm 800 |
| basis 2 | mm 1200 for top lower than 30 mm |
| built-in fitting hole | mm 980 x 500 |
| bowls depth | mm 190 - 130 |
| reversible version | |
| the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
| Vortex automatic pop -up waste kit with square control | |
technical
optionals
2.5
092037
stainless steel perforated bowl
mm 390 x 230
3.4
092028
stainless steel perforated tray
mm 320 x 190
3.7
092036
stainless steel perforated tray
mm 335 x 380
4.8
093102
stainless steel basket
mm 340 x 350
6.4
094051
iroko chopping board
mm 335 x 380
9.2
094054
iroko chopping board with stainless steel glass dr
mm 335 x 380
11.1
093004
stainless roll up carpet
mm 470x450
012989 satin-finished F3"slim
| basis 1 | mm 800 / mm 900 if at beginning of kitchen |
| basis 2 | mm 1200 for top lower than 30 mm |
| built-in fitting hole | mm 1140 x 500 |
| bowl depth | mm 190 |
| reversible version | |
| Vortex automatic pop -up waste kit with square control | |
technical
optionals
2.5
092037
stainless steel perforated bowl
mm 390 x 230
3.7
092036
stainless steel perforated tray
mm 335 x 380
4.8
093102
stainless steel basket
mm 340 x 350
6.4
094051
iroko chopping board
mm 335 x 380
9.2
094054
iroko chopping board with stainless steel glass dr
mm 335 x 380
11.1
093004
stainless roll up carpet
mm 470x450

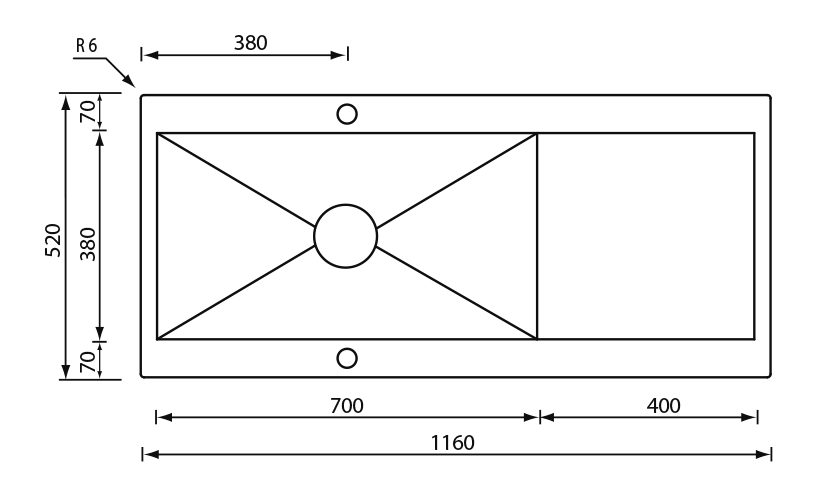

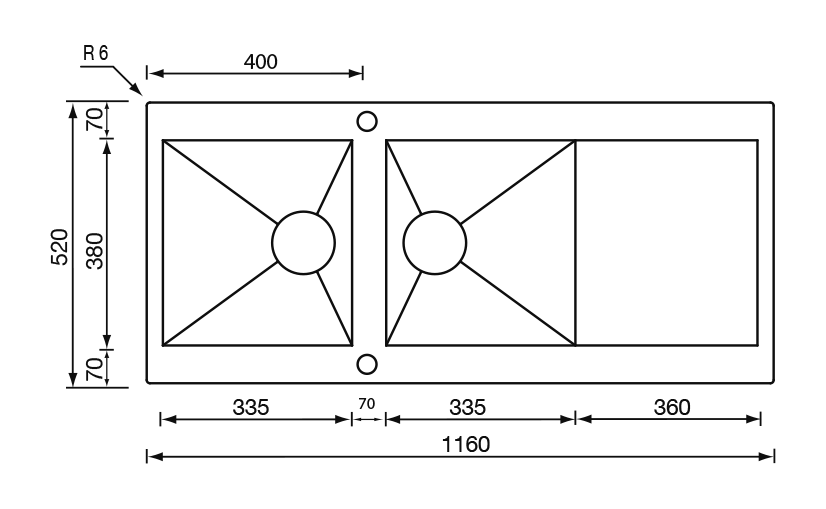

012987 satin-finished F3"slim
| basis 1 | mm 800 / mm 900 if at beginning of kitchen |
| basis 2 | mm 1200 for top lower than 30 mm |
| built-in fitting hole | mm 1140 x 500 |
| bowls depth | mm 190 |
| reversible version | |
| Vortex automatic pop -up waste kit with square control | |
technical
optionals
2.5
092037
stainless steel perforated bowl
mm 390 x 230
3.7
092036
stainless steel perforated tray
mm 335 x 380
6.4
094051
iroko chopping board
mm 335 x 380
9.2
094054
iroko chopping board with stainless steel glass dr
mm 335 x 380
11.1
093004
stainless roll up carpet
mm 470x450
